After several years of planning, and preparing a thorough application, Edmonton’s Old Strathcona district has joined the Alberta Main Street Program. Previously designated as a Provincial Historic Area in 2007, Old Strathcona is well known as one of Alberta’s most significant, historic commercial areas. The application was approved in late February by the Alberta Historical Resources Foundation, but was announced publicly for the first time last night, April 28th, at the Annual General Meeting of the Old Strathcona Foundation. This means that Old Strathcona joins a network of other dynamic, historic communities, like:
The Alberta Main Street Program uses the well established Four-Point Approach to foster excellence in historic commercial areas.
The announcement was made by Matthew Wangler, Executive Director of the Alberta Historical Resources Foundation, on behalf of the Honourable Heather Klimchuk, Minister of Culture.
Alberta Historical Resources Foundation Executive Director Matthew Wangler presents the Alberta Main Street Program Membership to Angie McDow, President of the Old Strathcona Foundation.
While unable to attend in person due to commitments in Southern Alberta, Minister Klimchuk commented that Old Strathcona’s “cherished landmarks are a boon to the social, cultural and economic sustainability of the community. This is one of the reasons the Alberta Main Street Program was initiated – to help communities achieve their conservation goals for the long-term benefit of Albertans.”
2014 marks the 40th Anniversary of the Old Strathcona Foundation, which will serve as the primary sponsoring organization for the Old Strathcona Main Street Program. The “OSF” has a tremendous legacy of heritage conservation and community engagement, and the Alberta Main Street Program is looking forward to partnering with them as together we look to create a meaningful future for this already vibrant historic urban landscape.
Perched high above the tree tops, braced to mountain peaks or balanced on steel towers, fire lookouts have a magnificent view. And that is the idea—they provide a place to watch for the first wisps of smoke that may signal the beginning of a wild fire. Detection, identification and then communication of the whereabouts of fires has been the job of the seasonal fire lookout observer in Alberta for over a hundred years.

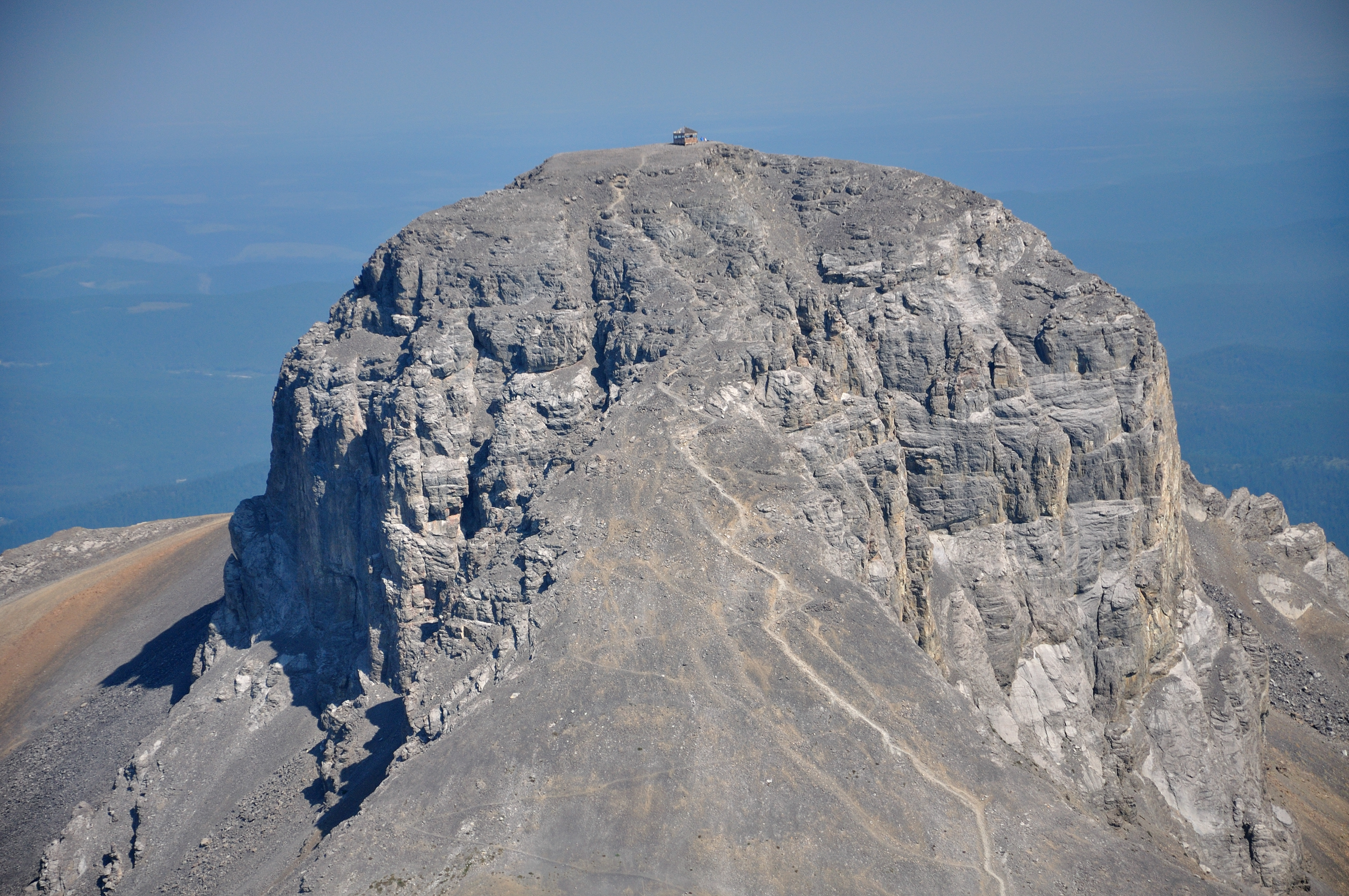

The abandoned Black Rock Lookout, near Banff, August 2009. (Photo courtesy of Alberta Sustainable Resource Development.)
By the 1890s forest fires were increasingly a cause for concern, not only because of economic opportunity lost when marketable timber burned, but because of a long term threat to water conservation. (Forests increase precipitation, prevent erosion and slow the evaporation of ground water.) In response the Dominion Forestry Branch developed trails for their patrol routes, and then began building a system of fire lookouts in Alberta’s extensive area of Forest Reserves and Parks. When jurisdiction over crown lands was transferred to Alberta in 1930, the Albert Forest Service expanded the system further, particularly during the 1950s.
The first tower lookouts were temporary, improvised from building materials the forest rangers found while on patrol. They were often no more than “crawl” tree structures—trees with their branches removed serving as supports for bush ladders, steps between poles attached to two trees. A pre-requisite for a permanent staffed lookout was a phone line. Available after 1910, the phone allowed the man in the tower to talk to someone in the nearest ranger station. Seasonal employees were hired to man lookouts during fire season and their job included maintaining the trails and telephone lines, as well as making weather observations.

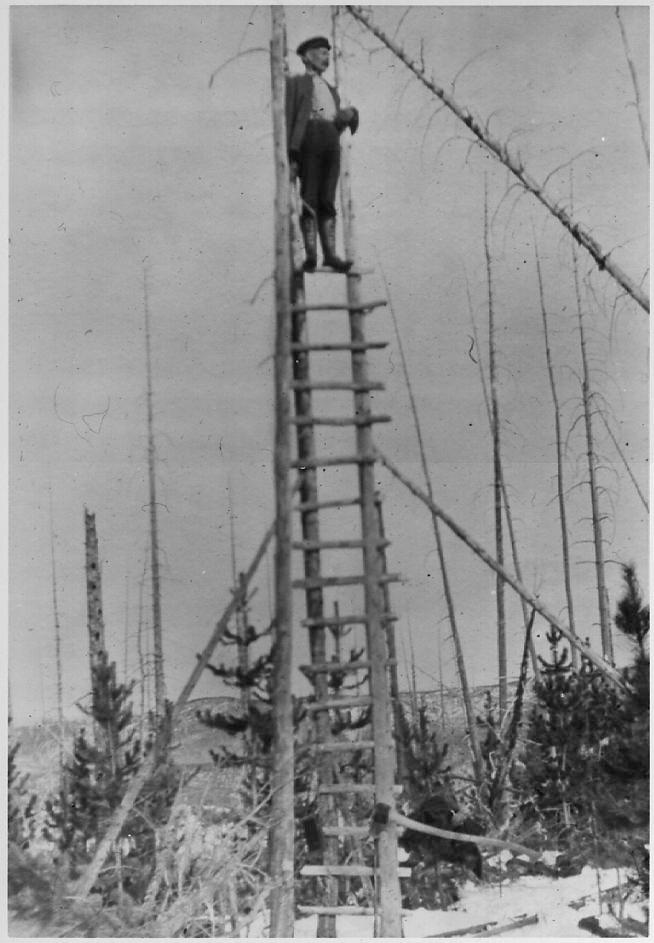

Tree crawl lookout, Brazeau Forest, 1912. (Photo courtesy of Alberta Sustainable Resource Development.)
After 1912 there were two types of lookouts: summit lookouts, built on the ground or on short stilts, which provided a vantage point from high alpine peaks, and towers, built on high hills in the boreal forest, which elevated the observer over any obstacles to vision.
On mountaintops the earliest summit lookouts were single, square wood frame 12 by 12 foot structures with a pyramidal roof. Later designs featured a 14 by 14 foot structure with a cabin at ground level and a second story for observation. At these locations everything was constructed from planed boards, the easiest and lightest material for horses to haul. The lookouts were held down by steel cable that ran from a post on the roof to wherever they could be secured in earth. Open windows with hinged wood shutters that pulled upwards gave a 360 degree view.
Burke Lookout (later renamed Cameron Lookout) built in 1929 on the summit of Mount Burke in the Livingstone Range is one example. At a staggering elevation of 8,330 feet (2,540 meters), it was the highest in Canada. It was hard work getting supplies up there each summer. The observer had to find his own wood supply for the stove to cook and keep warm; at Cameron this meant a long walk down the mountain to get below the tree line. Cameron was closed in 1953 and replaced by two lookouts positioned at lower altitudes that were easier to get to. Cameron is still visible with binoculars from Highway 2.

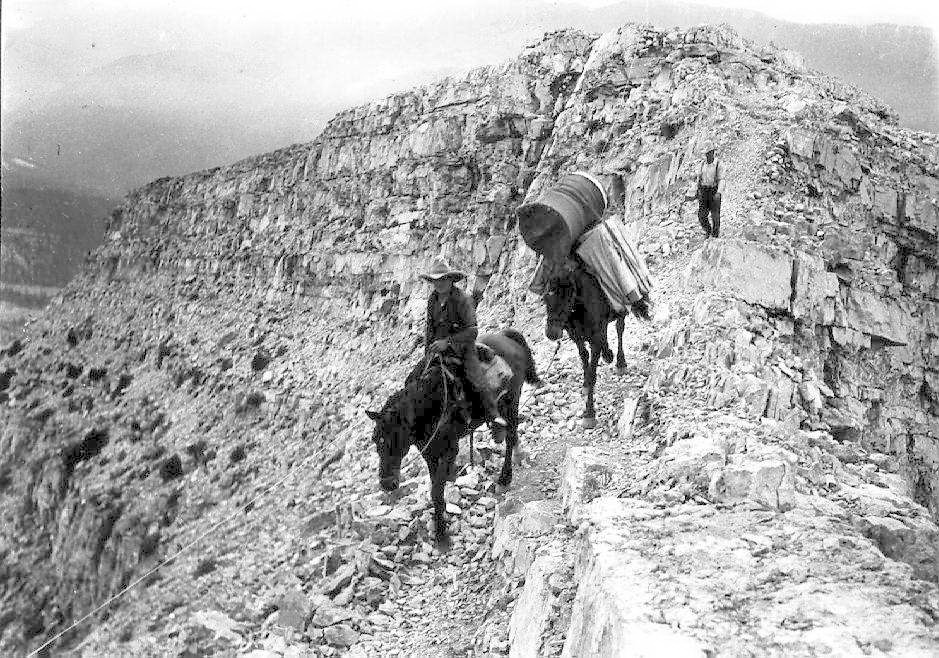

Packing in supplies to Cameron Lookout, 1929. Note the rain barrel for catching rain water. (Photo courtesy of Alberta Sustainable Resource Development.)
In the boreal forest area, a variety of tower types evolved. A smaller version of square lookouts, such as that built at House Mountain, near Whitecourt, was placed on broad-based wooden towers. Other towers were narrower, up to 60 feet high, with a small cupola lookout on top. They were constructed from either timber or steel. Introduced in the 1920s, steel increasingly replaced wood for tower construction. The later version of these steel towers replaced the wooden octagonal cupola with a fiberglass design in the 1960s.
Inside the lookout observers used binoculars to scan the forest then locate the fire with a rudimentary fire finder. Then in 1945, lookouts adopted the Osborne, an instrument used to help determine the precise location of a fire in relation to the tower. Mounted on a stand in the middle of the cupola, it measures the azimuth between true north and the location of a fire. Alberta is the only agency in the world that added a telescopic sight to the Osborne. Promoted by a couple of lookout observers in the 1960s, it was developed for use by the province to locate fires with precision over great distances.

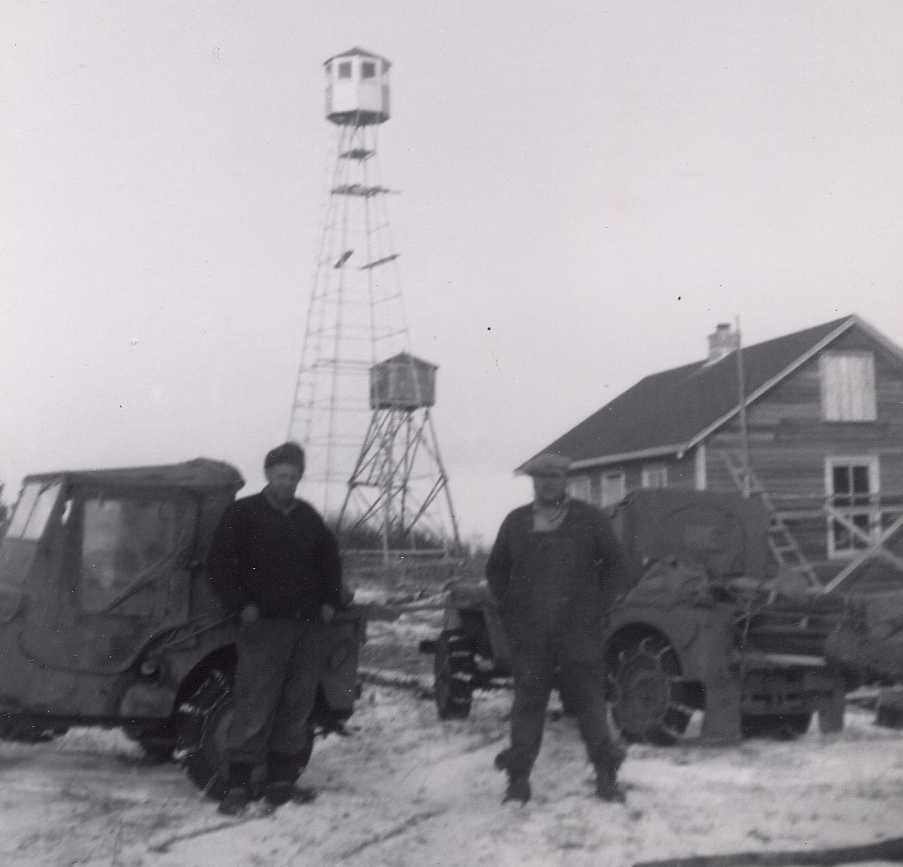

The new steel tower at House Mountain, 1953. (Photo courtesy of Alberta Sustainable Resource Development.)
In the early days, the real challenge was to communicate the location of a fire to the nearest ranger stations; the telephone system, a tree-line or tripod system in the mountains, employed cable strung between trees and held on with insulators. It was susceptible to lightning, sometimes with frightening results when a bolt hit the line and the charge travelled along it and up into the lookout. The telephone also went down when trees fell across the line in summer and snow load would take it down prior to the fire season. In 1938, the first two-way radios, run on a generator, were installed in lookouts for communications.
The importance of fire lookouts has not diminished. Many of Alberta’s 127 operational fire lookouts are rebuilt on the location of the first generation of lookouts. Although working conditions are more comfortable, the job requirements for lookout observers—strong physical and mental health to withstand the rigors of climbing the lookout tower, loneliness and often monotonous routines—have changed little. “You have to like yourself to take the job;” that’s what the old hands say about life on the lone lookout.
The Heritage Preservation Partnership Program of the Alberta Historical Resources Foundation is the provincial funding program focused on helping individuals and organizations fund heritage initiatives. As Grant Program Coordinator, Carina Naranjilla keeps that program on track.
Carina Naranjilla, Grant Program Coordinator, A.H.R.F.
The Alberta Historical Resources Foundation is a lottery-funded agency within Alberta Culture. The Heritage Preservation Partnership Program is one of the Foundation’s three grant programs. Heritage Preservation Partnership grants are awarded in five categories: Historic Resources Conservation, Transportation/Industrial Artifact Conservation, Heritage Awareness, Publications, and Research. There are also two scholarships: the Roger Soderstrom Scholarship and the Bob Etherington Heritage Trades Scholarship.
At the close of the twice-yearly application deadlines, Carina logs the applications, then distributes them to the appropriate subject experts within the Historic Resources Management Branch to develop informed recommendations to the Foundation’s Board of Directors.
“I’m not an archaeologist, a historian or conservation expert … so I rely on these people surrounding me in the branch for their technical expertise,” she explains. “My job is to coordinate with them, really putting all their expertise together. I set the timelines. We meet before they submit the technical evaluations to me. Then I edit [their evaluations], ensure the recommendations align with the funding policies and grants budget, check the accuracy of the financial information—a lot of detailed stuff.”
She emphasizes how important these evaluations are: “There are a lot a good projects, but you only have so much funds to distribute, so the challenge is to make sure that we are being fair and…when we deny an application or give reduced funding … we are able to provide the rationale” to explain that decision.
She consults with the Executive Director of the Alberta Historical Resources Foundation on the evaluations and recommendations, and finalises the recommendations that go to the Alberta Historical Resources Foundation’s board for review. She also assists “in the overall operation of the Foundation … administrative, financial, stuff like that.”
The Foundation’s board meets four times a year, and decisions about these awards are made at two of those meetings. Carina organizes the board meetings, along with managing other board interaction: “I look after drafting the agenda, coordinating the logistics, coordinating the materials and making sure they’re distributed on time—everything pertaining to the board meeting.” The two-day meetings, held in different locations around the province, always include a tour of the host community and opportunities for board members to meet with local heritage stakeholders. Carina particularly enjoys this outreach and the chance to see the local impact of grant-funded projects.
The recently announced conservation grants for owners of flood-impacted historic properties will mean more administrative responsibility for Carina. This special funding program will be run in the same way as the Heritage Preservation Partnership Program, but with different deadlines and a separate funding pot of $4.5 million. Carina is eager to see the applications that will come in at the first deadline, April 1.
She also manages two other programs of the Alberta Historical Resources Foundation:
There are the Heritage Awards, presented every two years in the categories of Heritage Conservation, Heritage Awareness, Municipal Heritage Preservation, and Outstanding Achievement. Carina oversees the application and review process, and plans the awards ceremony. “It’s really fun to organize,” she says. She also collaborates with the Communications Branch, which generates media coverage to encourage nominations and publicize the award decisions. The next ceremony, scheduled for October 16, 2014, will be held in conjunction with the annual Municipal Heritage Forum for the first time. Carina anticipates that this will bring even greater attendance and attention.
“So, you’ve got to be organized,” Carina concludes about her multifaceted position. She has been with the Historic Resources Management Branch since 2000, and in her present position since 2009, after earning a master’s degree in industrial engineering and working as a Business Analyst in her home country, the Philippines, then holding diverse administrative positions in private industry and government in Edmonton.
While not a heritage specialist herself, Carina says she’s continually learning from her colleagues. For example, when she has time, she likes to “tag along” with the Heritage Conservation Advisers on site visits to view the buildings and projects they’re working on. “It’s great because you collaborate with all these people,” she says. “That’s the fun part of my job.”
New Uses for Old Places is a RETROactive series in which we are looking at examples from around Alberta of historic sites that have found interesting new uses for spaces that were originally designed for other purposes. In this last installment we will be looking at King Edward School in the neighbourhood of South Calgary as an example of adaptive reuse project underway to repurpose the building as a mixed-use arts incubator (a place that nurtures the growth and development of artists and arts organizations).

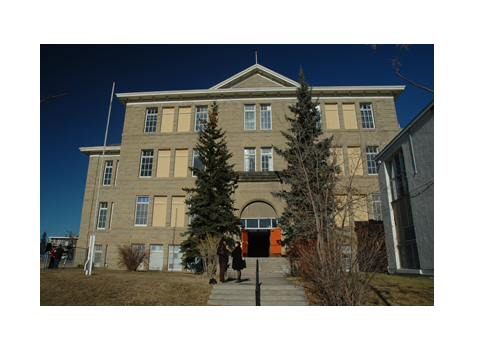

The King Edward School was constructed in 1912 as a four-storey building that features a symmetrical design, rock-faced sandstone walls and a dressed sandstone front entrance. During its time as an institution of learning, the School also functioned as a community hub, hosting dances and other events. The school operated as versions of both King Edward Elementary/Junior High School and South Calgary High School. The school closed in 2001 and sat empty…until now.

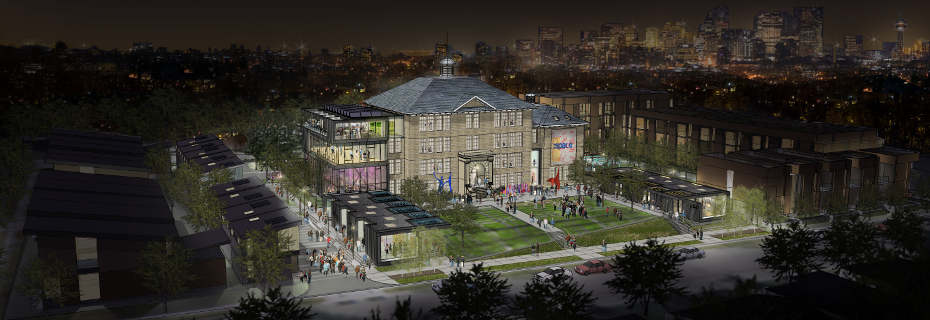

In 2011, cSPACE Projects was established by the Calgary Arts Development Authority and the Calgary Foundation for the purpose of promoting opportunities for artist and non-profit arts/community groups. cSPACE became the new owners of the property and is now embarking on an ambitious rehabilitation effort.
The project involved the removal of a 1960s addition that was deemed to be non-character-defining to the historic value of the place as well as the construction of a new addition and two adjacent art studio pavilions. Modelled around the concept of providing a ‘creative commons’, ‘learning commons’ and ‘community commons’, the finished product will include facilities for artistic production, exhibition and rehearsal and will serve as home to a range of arts organizations and independent artists.
To learn more about this project, watch this video:
As part of the project the owner and the City of Calgary have entered into an agreement to ensure that the King Edward School will be designated a Municipal Historic Resource.
The story of the Alberta Wheat Pool Elevator at Leduc.

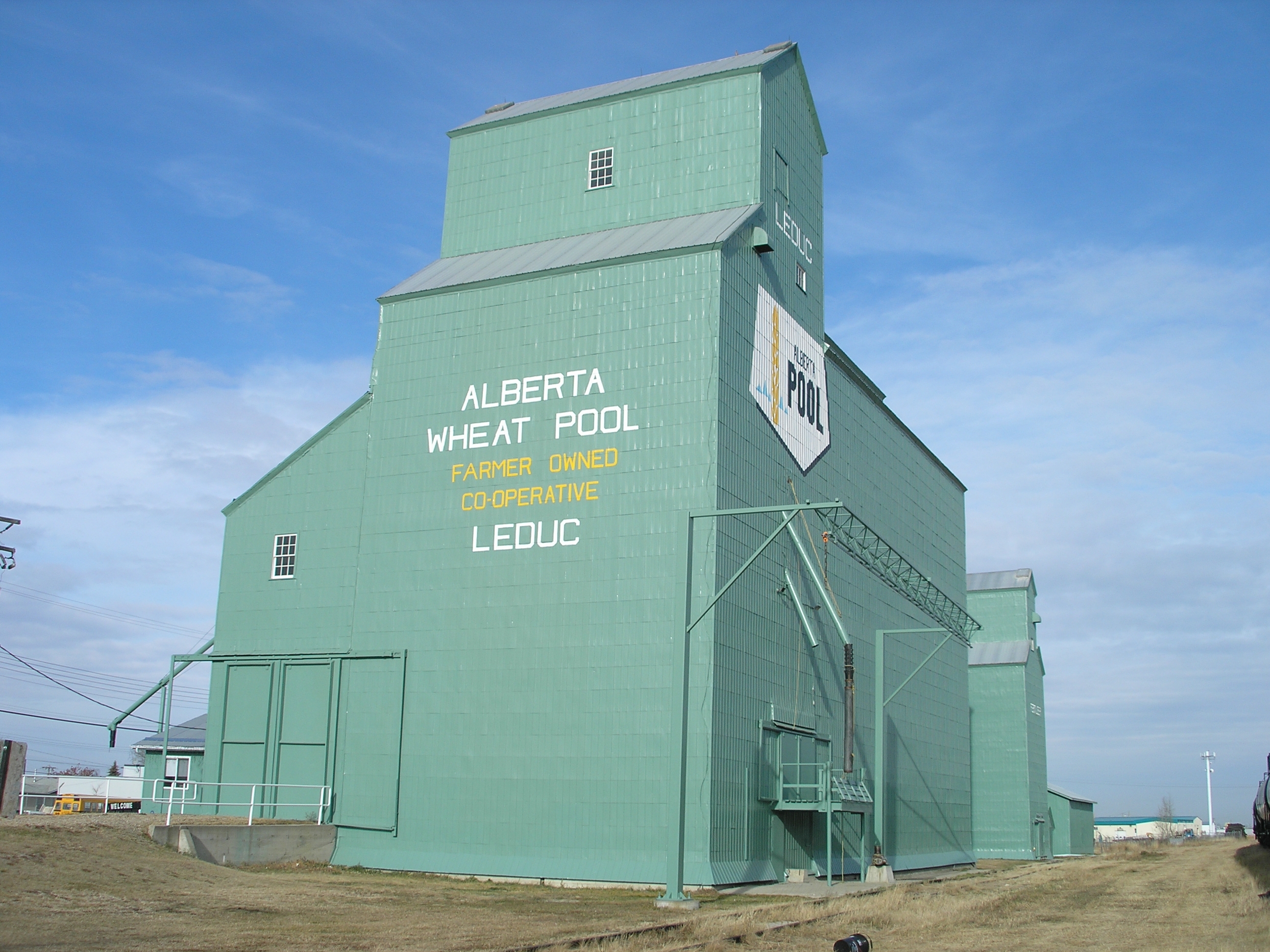

Leduc Grain Elevator in 2007. Photo by Judy Larmour, Courtesy of Alberta Legacy Development Society.
Have any elevator enthusiasts out there ever noticed that the former Alberta Wheat Pool Elevator at Leduc looks a little different? It is a unique low-profile version of the Pool’s single composite 130,000 bushel elevator built on a standard plan during the 1960s and 1970s. It’s also unique as the only grain elevator that lies directly under the flight path to the main runway of an international airport and therein lies a story.
In 1976 the Alberta Wheat Pool revealed its intent to build a new elevator at the siding in Leduc. It wanted an elevator that would have a large enough capacity to replace all their aging elevators on the row, allowing for easier and more efficient grain handling. A single composite elevator built to the standard design stood normally over 27 meters hight (approximately 90 feet). This was considered a navigational hazard for airplanes approaching the airport—too high to get clearance from Transport Canada. So the Alberta Wheat Pool engineers went back to the drawing board to adjust the design, reducing its height. Transport Canada was satisfied with the new design, gave the green light and Leduc issued a building permit. Work began under AWP construction foreman Jim Pearson in spring 1978.
All elevators were basically built the same way. First a hole was excavated, cement foundation pads were poured and the steel pan set flush in the pit. The crew began construction of the sturdy cribbed walls, built to withstand the weight of the grain. The cribbing timbers were laid flat and spiked together. The cribbing of the exterior walls continued in rounds, in step with the cribbing of the inside bins, so that the elevator rose at an even height. As the cribbing progressed the crew installed the leg to elevate the grain, the distribution spout or gerber, the hopper and scales on the work floor, and the loading spout to the track below. The cupola on top was put together with pre-cut wood studs and shiplap or plywood walls. Finally the driveway was added, and the whole structure was clad with wood siding.
At Leduc, as Pearson later explained, changes had to be made to the standard plan. Instead of the standard 67 foot walls, the walls and bins were cribbed up only 59 feet, and the cribbing strength was reduced proportionately to the overall height of the building. The standard rounds of 2 by 6 cribbing were reduced by 5 feet and the higher 2 by 4 cribbing by 3 feet. To partially compensate for the lost volume, the design incorporated an annex 10 feet longer than was standard, giving the structure a footprint of 38 feet by 100 feet.
Lowering the walls 8 feet was still not enough to meet the required height restrictions. Another factor came into play. Elevators compress when they are filled with grain. The term telescope is used to describe a number of ways to allow the building to move in response to changing loads without causing damage to the structure. Normally, the leg is in one piece, so the cupola must be high enough to clear it as the elevator compresses. The Pool, wishing to install two metal legs—one for receiving grain and one for shipping, as was common by the 1970s—had to devise special legs at Leduc. They were telescoped in the middle and moved with the elevator to allow a lower profile than the standard one piece leg. A floating pulley in the pit took up the slack in the belt inside the leg. This one-of-a-kind system designed by Pool engineers allowed them to construct the cupola thirty inches below the regular height. When the new elevator was complete it was about the same height as the three 1920s elevators that it replaced.
The flight path-friendly elevator, with a capacity of 121, 000 bushels, was more expensive than a standard elevator. It cost $592,752 to build and opened in December 1978—the official ribbon cutting deferred until April 1979. It proudly served the farmers of Leduc until July 2000. When its days were clearly numbered and it, too, was faced with demolition the newly formed Alberta Legacy Development Society sprang into action to ensure its survival. Designated as a Provincial Historic Resource in 2003 and with fresh coat of paint in September 2007, it flaunts the once familiar and omnipresent Alberta Wheat Pool crest and logo.
So the next time you fly over Leduc into Edmonton, just before landing, look down to spot Alberta’s special stubby, one of the last Alberta Wheat Pool single-composite elevators standing and still the tallest building in downtown Leduc.
Alireza Farrokhi at the Head-Smashed-In Buffalo Jump during the 25th anniversary celebration in July 2012.
Alireza Farrokhi, Head of Conservation and Construction Services in the Historic Resources Management Branch, describes his work this way: “My unit is the operational arm of our branch. Other program areas protect historic resources and promote heritage conservation by designation, research, and advisory services to municipalities and private property owners; they tell how heritage conservation should be done. We are the group that does it.” Like other program areas, Conservation and Construction Services follows Standards and Guidelines for the Conservation of Historic Places in Canadaclosely.
Stewards of Provincially Owned Historic Resources
Conservation and Construction Services is responsible for “the heritage conservation, maintenance, and environmental management at all designated Provincial Historic Resources that are owned by the province.” That includes more than 50 restored historic structures, 14 operating historic sites, and 70 “mothballed” (vacant but stabilized) historic structures located at five sites not currently in use. The unit also collaborates with other government ministries—such as Alberta Environment and Sustainable Resources Development; Alberta Tourism, Parks and Recreation; and Alberta Infrastructure (the property manager for all government-owned buildings)—if heritage conservation work is required as part of a larger project.
The seven-member unit (which includes three Heritage Conservation Technologists, a Restoration Foreman, and two Restoration Craftsmen) is currently working on numerous projects throughout the province. Staff members once covered specific geographic areas, but are now more likely to be assigned projects based on their expertise. Members of the unit make up the crew for smaller projects. Larger ones are contracted out, with unit staff overseeing the project planning and management.
Restoring and Conserving
The unit’s ongoing workload ranges from conducting multiyear, multistructure restoration projects to addressing specific conservation problems, including some “that come out of the blue.” One staff member works full time at the Ukrainian Cultural Heritage Village, east of Edmonton, restoring buildings one by one. Another has been restoring the log structures at the Perrenoud Homestead near Cochrane. Members of the unit have also worked recently at the Rutherford House in Edmonton, the Stephansson House near Markerville, and Victoria Settlement near Smokey Lake.
Hewko House restoration at Ukrainian Cultural Heritage Village: before (2008) and, after (2009)St. Charles Mission re-roofing at Historic Dunvegan
Heritage and Environmental Conservation
Alireza’s current projects involve restoring “environmentally challenged” industrial sites. He and a colleague are currently working at three that were critical to Alberta’s history: Turner Valley Gas Works, Alberta’s first natural gas plant and a key player in the creation of the province’s oil and gas industry; Greenhill Mine Complex, a historic coal-mining operation in the Crowsnest Pass; and the Bitumount Site north of Fort McMurray, the birthplace of oil sands extraction technology.
Scale model of the sulphur plant at Turner Valley Gas Plant (top) and the genuine article (bottom)
“Back then, their focus was solely on energy extraction. They were not really concerned about the environment,” he says. “But now these are areas that we need to clean up with heritage conservation considerations, so we can’t just dig out the dirt and take it away.” Older structures and equipment must be rescued and stabilized; working in sections, contaminated soil and water must be removed, contained, and treated; nearby waterways must be monitored to verify that groundwater and surface run-off is now clean.
Other historic sites under the unit’s care often require environmental remediation as well, especially removal of asbestos and lead paint.
Regular Maintenance: Conservation at its Best
Conservation and Construction Services is also responsible for regular maintenance (as part of the heritage conservation process) at the sites under its care. To help with that, the unit is developing a maintenance manual for each historic structure. The manual will compile, for easy reference, all records of previous work conducted, related reports, cyclical maintenance requirements, and specific concerns to monitor “so we’re not caught off-guard.”
Alireza loves the challenge and creativity of heritage conservation work. “If a job is not challenging, it’s not interesting,” he says.
Modern buildings tend to develop predictable problems that have known solutions, he explains. But with heritage buildings, “the problems that we deal with don’t necessarily have known solutions. You have to come up with innovative ways of dealing with problems. I love that! It opens up the discussion. There are no right or wrong answers.” For every project, “you always consider the construction technology, what kinds of materials are used, why this is happening, and how you can resolve the issue without impacting the heritage fabric and values.”
An example is recent work at the Rutherford House, an interpreted site on the University of Alberta campus. The sun porch is used as part of the restaurant. Air leaked in through its windows, making the space hard to heat, and water condensation was rotting the wooden window frames and sashes. It was decided to add unobtrusive storm windows where none had existed before. That involved “coming up with different details, experimenting, discussing with our contractor what’s possible and what’s not, and monitoring the work along the way, experimenting to see if it works.” Now the heating and condensation problems are solved and the staff is “very happy,” Alireza says. And, “it would be very hard for you to pick out where the storm window is because it blends into the historic window as if it’s not there.”
From Iran to Canada
Alireza started his career as a civil engineer in his home country of Iran, doing project management for the construction of large-scale industrial and high-rise buildings. His eyes were opened to heritage conservation work when the firm that employed him was building the subway system in historic areas of Tehran. The discussions about the heritage fabric encountered there were like “poetry,” he recalls.
Alireza earned a master’s degree in heritage conservation in Tehran, then he cofounded a private company specializing in heritage conservation—a risky business venture in a country where almost all conservation work is done by the government. The company grew into one of the largest of its kind in Iran.
His company helped with stabilization of heritage structures of the 2500-year-old Bam Citadel, which was damaged in a devastating earthquake in 2003 in which some 43,000 people lost their lives. While doing that work, Alireza questioned why, at the same time that thousands of displaced people lacked basic necessities, conservation professionals were routinely advocating the use of the most advanced and expensive documentation techniques instead of less costly ones (laser scanning rather than study of years of existing aerial photographs.
That led him to the University of Calgary’s doctoral program in Environmental Design, to explore how and why professionals in heritage conservation (and potentially in other fields as well) choose which documentation technology to use. Alireza joined the Historic Resources Management Branch as a Restoration Officer in October 2011, and has been in his current position since July 2013, while also completing his dissertation.
After working on ancient monuments and sites in Iran, doesn’t Alberta’s heritage seem rather modest by comparison? Not at all, Alireza insists! “It comes down to a question of values—what you value. Heritage is heritage, regardless of how old a particular structure is. It brings people together, it creates a sense of community, and those are the important factors.
“And the conservation approaches are similar all across the board. For sure, some techniques are different, but the overall approaches are the same, so whatever you do in one part of the world could be adapted for anywhere else.”
We’ve published articles on Alberta’s historic grain elevators in the past and they’ve struck a cord. We’re preparing a few more articles about Alberta elevator’s, so stay tuned. In the meantime, we though you may wish to know how a grain elevator worked.

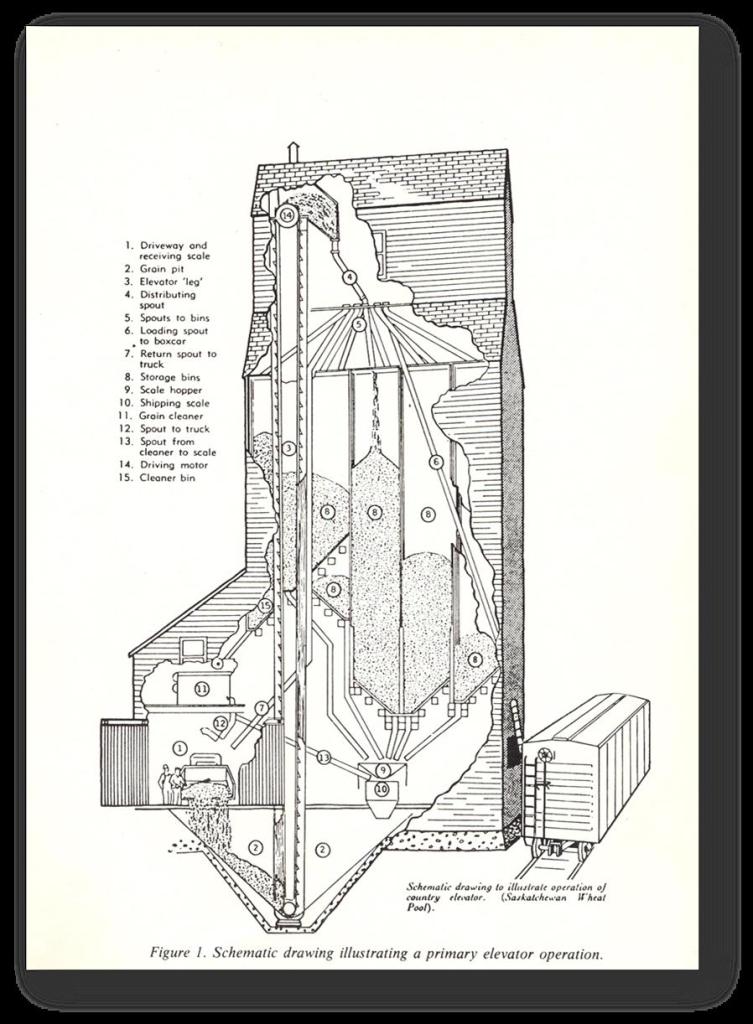

A diagram of a standard grain elevator.
The interior of a traditional elevator contained two open areas: an attached covered driveway and an open space under the suspended bins, known as the work floor, in the centre of the elevator. A fully-loaded vehicle was parked on the large receiving scale, which took up most of the driveway floor. The agent weighed a farmer’s fully-loaded truck, wagon or sleigh using a balance beam to the side of the scale. The farmer then dumped his load through a grate on the scale floor and the now empty vehicle was re-weighed. The agent took a sample of the grain, which he analysed for type and quality.
The grain flowed through the grate into the pit below. This pit was an open triangular shaped steel pan. The agent then used the leg to elevate the grain from the pan or pit. The leg stretched from the pit to the top of the elevator. The leg — originally powered by a 15 horsepower, one-cylinder gasoline engine mounted under the office, and later by an electric motor—was an endless belt with cups attached running inside a wooden chute up the elevator,. As the leg turned, it elevated grain to the head distribution spout or gerber. The gerber was moved from one bin spout to another to direct the grain to the desired bin. The gerber was controlled from the work floor with a wooden pedal and a large hand wheel attached to the front of the leg chute.
Most spouts in the cupola fed into a storage bins (there were at least 18 but often more). The load was stored in a bin holding the same type and grade of grain. One spout led directly outside the elevator on the track side; it could be positioned over the track for loading grain into grain cars. Another spout returned grain from within the elevator to the driveway where it could be dumped into a waiting wagon or truck.
When the agent wanted to ship a quantity of grain he drew grain from the selected bin into the shipping scale bellow the scale hopper. After it was weighed the grain was dropped into the pit, the leg re-elevated itand directed it through the gerber and into the rail car loading spout and down into a grain car waiting on the siding beside the elevator.
Larry Pearson, Director of the Historic Places Stewardship Section.
As Director of Historic Places Stewardship, Larry Pearson heads one of the three sections that make up the Historic Resources Management Branch. Next October will mark Larry’s 35th anniversary doing heritage conservation work for the Province of Alberta—and he’s seen, and overseen, many changes.
Larry was completing a master’s degree in architecture at the University of Calgary, with a focus on heritage conservation, when he was hired as the Restoration Officer at the Ukrainian Cultural Heritage Village. Within a few years, the Ukrainian Cultural Heritage Village was amalgamated into the provincial Historic Sites Service, and eventually Larry became responsible for overseeing the architectural design work for all provincially owned sites undergoing restoration.
He was the project manager for a three-year effort to develop the Fort George and Buckingham House Provincial Historic Site—location of the first forts along the North Saskatchewan River, dating from 1792—into an interpreted site with a visitor centre and trail system. Later he headed a team, made up of colleagues he’d worked with at the Ukrainian Cultural Heritage Village, that researched and carefully dismantled St. Onuphrius Church Ukrainian Catholic Church. The Canadian Museum of Civilization (now called the Canadian Museum of History) acquired the small Eastern-Rite church to be part of the Canada Hall, its main permanent exhibit. That project won the 1997 Premier’s Award of Excellence as best team project.
Larry enjoys the challenge of planning restoration projects: “understanding how a building has changed over time, confirming what it looked like, deciding the appropriate period of significance that we want to return it to, and returning it to that period in a way that has minimal impact on historic fabric.” And he appreciates the value of collaborating (including having impassioned discussions) with colleagues from related disciplines. He continues to encourage that kind of teamwork in his current position.
As of 2000, Larry was managing what was then called Community Heritage Services, within the Historic Sites Service. Community Heritage Services was responsible for identifying and designating historic places as Provincial Historic Resources, and ensuring that their ongoing conservation preserved their heritage value, as well as providing assistance to community groups involved in heritage projects—a lot of what the Historic Places Stewardship Section does now. But this was somewhat outside the scope of the rest of the Historic Sites Service, which was focused on the development and operation of provincial historic sites. Meanwhile, other units involved in identifying, protecting, and supporting the conservation of historic resources were located in different branches of the Heritage Division. Because heritage resource management functions were diffused across the division, “the philosophical and policy discussions that needed to happen around how to identify, protect, and manage Alberta’s historic places didn’t happen,” Larry recalls.
In fall of 2000 he and colleagues from other branches within the Heritage Division were asked “to develop and implement a process that asked and answered the question: ‘Are we structured the best way we can be to accomplish what we’re being asked to accomplish?’” The result was a reorganization that established the current Historic Resources Management Branch in February 2001, gathering together functions that previously had been spread across other branches.
Larry was responsible for forming what was then called the Protection and Stewardship Section within this new branch, which he has headed since its beginnings. “The section’s programs are focused on identifying, protecting, and conserving Alberta’s historic resources,” Larry explains.
From the start he worked to ensure that “we had an established rulebook, a policy framework, about what we were doing.” His approach to conservation management was informed by his participation on the Association of Preservation Technology’s board of directors from 1984 to 1989, as a member of the training and conference committee, and later as program chair for its 1999 conference held in Banff. This work brought him in close contact with preservation professionals from the United States who were employing federal-level tools there, notably the U.S.’s National Register of Historic Places and the Secretary of the Interior’s Standards for the Treatment of Historic Properties.
During the late 1980s, Larry led an initiative to develop a set of provincial standards and guidelines for the conservation and care of historic buildings. Alberta’s Guidelines for the Rehabilitation of Designated Historic Places, which were based on the U.S. Secretary of the Interior’s Standards, were first printed in 1990, then revised and reprinted in 1993.
Then in 1999, Parks Canada began discussions with federal departments, provincial and territorial officials, and other stakeholders to develop a pan-Canadian strategy to identify and conserve Canada’s historic places. A team of representatives from provincial and territorial governments around the country worked intensively to develop a Canada-wide approach to heritage conservation.
The result was the Historic Places Initiative (HPI), launched in 2001, which over the next few years established the Canadian Register of Historic Places, Standards and Guidelines for the Conservation of Historic Places in Canada, and a process for certifying that designated historic properties are conserved in accordance with the Standards and Guidelines. The HPI also provided federal funding to provinces and territories to help them implement the HPI, so that all provincial (and by extension municipal) historic places would be included.
Larry helped represent Alberta during the HPI planning process. Alberta was a key contributor to developing the HPI’s Standards and Guidelines. Alberta officially adopted the Standards and Guidelines in August 2003. Colleagues in his section ensured development of the Alberta Register of Historic Places and the listing of Alberta’s historic places on the Canadian Register.
Along with bringing these new guiding principles to the work of the section, which with the advent of the HPI had been renamed the Historic Places Stewardship Section, Larry also made a major organizational change: expanding the reach of the section by adding a new program area. Although municipalities had been empowered by the Historical Resources Act since 1978 to designate their own historic resources and implement protections for them, very few had chosen to do so, or even knew about this conservation tool.
Larry continues: “The federal government asked the provinces to reach out to their municipalities, to ensure they were included in the work of the Historic Places Initiative. So we took a portion of the federal HPI funding and developed the Municipal Heritage Services Unit. We flowed much of the federal money through to our municipalities. It was all about building municipal capacity. Within that unit, we developed a new program called the Municipal Heritage Partnership Program to provide matching grant funding to municipalities so they could identify through surveys and inventories what’s important to them, and to help them, again through funding, to develop [municipal heritage designations] and municipal historic resource management plans…So there was a very significant, concentrated effort on engaging municipal government.” The MHPP was officially launched in 2006, although aspects of it had been piloted in previous years. “It changed our focus,” Larry says.
More recently, the section’s responsibilities have grown to include the delivery of maintenance and conservation services related to historic sites and museums owned or operated by the Heritage Division, bringing further conservation expertise into the unit. The section also now provides research services in support of the interpretation programs of a number of these sites.
As Director of Historic Places Stewardship, Larry monitors, critiques, and signs off on all decisions made by the programs within the section. For example, he reviews recommendations on provincial heritage designation made by the Historic Places Research and Designation Program, approvals for proposed changes to designated resources made by the Heritage Conservation Advisory Services, and grant-funding recommendations made to the Alberta Historical Resources Foundation by different subject specialists within the section. He also oversees “staffing, manpower, budget—administrative things.”
A big part of his job, he adds, is encouraging collaboration and teamwork among the staff of the section’s different program areas. “Nobody could do what they do without somebody else from another unit helping them,” he says, “which I think is one of the reasons why it’s such a strong section. They all know what everybody else does, and they all have a very clear, shared vision.”
As one of the ‘epicentres’ of the catrastrophic floods of 2013.
On Wednesday March 26th, at the aptly named Heritage Inn, a community Open House was held for the second phase of the Town’s Heritage Inventory. While the first phase focused primarily on evaluating historic commercial buildings in the downtown area, this second round concentrates more on residential properties that have heritage value to High River. Hosted by the Town, the Open House featured attendance from both the professional heritage consultants engaged by the Town, as well as Historic Resources Management Branch staff.
Matthew Francis, Manager of Municipal Heritage Services talks with an owner of a Municipal Historic Resource.
Over 40 members of the community came out to participate in the Open House. Guided by Town staff, the consultant team, and members of the Heritage Advisory Board, attendees busily engaged themselves in providing local knowledge, writing comments about each of the properties identified for evaluation. Attendees from the community also had the opportunity to speak with Alberta Culture staff, to get answers about the Municipal Historic Resource designation process, or about tecnical conservation issues.
Alberta Culture Heritage Conservation Advisor Fraser Shaw provides information to a property owner at the High River Heritage Inventory Open House.
Open House events like these, which are integrated into each Heritage Inventory project, yield tremendous results – increasing knowledge of our historic places, and helping to create a meaningful future for them. As the Town’s Planning Coordinator, Jill Henheffer, shared, “It was totally a team effort.”
