A Crack Runs Through It: Repairing the West Wall of Lethbridge’s Chinese Free Masons Building

Editor’s note: Our first article recognizing #HistoricPlacesDays takes us to southern Alberta. The banner image above, featuring low-lying rear lots with gardens in Lethbridge’s Chinatown in 1956, looking west, is courtesy of the Galt Museum and Archives.

Written by: Fraser Shaw, Heritage Conservation Advisor

Since its construction in 1924, the Chinese Free Masons Building has been an anchor in the physical and social fabric of downtown Lethbridge and on of Alberta’s most intact historic “Chinatowns”. A large crack zigzags across the west wall of the Provincial Historic Resource and propagates east down the block, telegraphing through the walls of its historic neighbours and terminating at the old No. 1 Fire Hall. The crack recently presented repair challenges and is the legacy of a historic landscape and a transformed physical and cultural geography.

1990s photograph from the northwest with the west wall crack and previous repairs clearly visible toward the back (right) half of the building. Source: Historic Resources Management Branch.

Some 12,000 years ago, as the Laurentide ice sheet retreated toward Hudson Bay, torrents of meltwater carved deep channels across southern Alberta, including today’s Oldman River valley. Long tributary coulees reached like fingers from the valley’s east side, a pattern evident today along the escarpment behind the Galt Museum. One of these coulees extended east between what is now 2nd and 3rd Avenue South and appears in early plans and photographs of Lethbridge. Uneven and difficult to build on, the block attracted Chinese immigrants and entrepreneurs who established new businesses on lots that were strategically close to the fledgling town centre but slightly apart from it, a development pattern reinforced by discriminatory policies of the day that relegated Chinese-owned businesses to marginal land away from the commercial core.

A fire insurance map of 1910 predates the construction of the Chinese Free Masons Building on Block 19 Lot 5 (blue outline) but notes infilling of the ravine or coulee (circle at lower left). Arrows indicate the original extent of the coulee eastward through Block 19. Source: Library and Archives Canada, with added annotations.

Development has infilled the coulee such that the historic landscape today survives only in the sunken rear lots of the Bow On Tong Company Building and Wing Wah Chong Company Building, both of which are Municipal and Provincial Historic Resources. These low-lying back yards were historically put to good use, providing direct access to basement apartments for newly arrived immigrants from China and serving as vegetable gardens (see banner image at top of page). Though hidden, the buried coulee survives as relatively weakly consolidated infill soil under the back portions of the block’s historic buildings. These areas move and crack as soil compacts, takes up water from the poorly drained rear lots, or moves seasonally where shallow rear foundations are susceptible to frost heave. The rear lot at the Chinese Free Masons Building has been infilled but unstable soil conditions persist and cause structural movement and recurrence of the west wall crack despite repeated patching.

1924 photograph, possibly showing the Masonic hall’s grand opening. Source: Galt Museum and Archives photograph 19800128000.

Foundation underpinning on deep piles into undisturbed soil would stop the structural movement and cracking but is very costly. A local architect assessed no immediate threat to the building and recommended a practical and cost-effective crack repair alternative. This consisted of saw cutting a new flexible control joint into the outer wythe or layer of brick beside the old crack, to accommodate ongoing structural movement while maintaining integrity as a weather seal. The existing crack was too irregular for proper installation of a reliable sealed joint. As a precaution, the established crack was also repaired with flexible sealant, into which masonry sand was pressed to resemble a traditional mortar joint and disguise the repair as much as possible.

Conservation work normally favours traditional materials but a deep mortar repair risked “locking” the wall in place and causing cracks to appear elsewhere. Correctly formulated lime mortars can absorb some movement and even “self heal” as free lime recrystallizes within emerging hairline cracks — but structural movement at the Free Masons Building demanded a more elastic joint.

Paint failure on second floor interior west wall, April 2019. Source: Historic Resources Management Branch.

The second floor offers a large open space that has served as a Masonic hall for almost a century. The interior walls are original plaster applied to the interior face of the brick masonry exterior walls. Coated with many layers of paint, the walls deteriorated rapidly after the interior was repainted to hide smoke damage after a fire in 2009. Driving rain through the west wall crack was initially suspected as a moisture source but the extensive paint failure was actually in another location. Further assessment determined that the problem was excess moisture within the wall combined with the wall’s inability to dry through impermeable layers of paint.

The west wall is thus a highly porous brick that readily absorbs moisture. Like many old brick buildings, the Chinese Free Masons Building uses a high-quality, durable brick on the front facade with less expensive bricks on the side walls that were often intended to be protected by adjacent buildings. Mortar joints also play a role: lime mortar both binds the masonry and actively wicks moisture in the wall to the surface, where it then evaporates. However, as mortar weathers, leaching of the lime binder reduces this wicking action and eroded joints provide more surface area for water absorption, effectively turning a wall into a sponge. On the wall’s inner face, permeability declines with each layer of paint and as old alkyd paint ages. The most recent repainting was the last straw: acrylic latex paint is vapour-permeable but drying of the wall fabric relies on liquid (if microscopic) capillary moisture transfer. The result is that moisture absorbed through the exterior brick trapped within the wall literally pushes the paint off the plaster.

Second floor (Masonic hall) with far wall after plaster repairs and application of clay paint, March 2021. Source: Historic Resources Management Branch.

To correct the problem, peeling interior paint was stripped by hand and moisture-damaged plaster was patched with a compatible gypsum plaster free of latex or polymer additives that might otherwise impede prevent drying. A special, highly permeable clay-based paint was applied to the wall and colour-matched to the historic interior. Combined with renewing or “repointing” the exterior masonry with a compatible lime mortar, these measures avoid sealing the wall and instead restore the historic fabric’s intrinsic ability to absorb, buffer and release moisture by drying to the interior and exterior. The repaired west wall with its new control joint and evidence of the old crack are a testament to ancient landforms, local history and Lethbridge’s evolving urban landscape.

View from northwest in June 2021 with new control joint on west wall and muted expression of historic crack. Source: Historic Resources Management Branch.

Sources:

C.B. Beaty and G.S. Young, The Landscapes of Southern Alberta: A Regional Geomorphology (Lethbridge: University of Lethbridge, 1975), 66-77.

For a discussion of the early development of Lethbridge’s Chinatown, see David Chuenyan Lai, Chinatowns: Towns Within Cities in Canada (Vancouver: University of British Columbia Press, 1988), 90-91.

Sandstone Conservation in Chinook Country

Written by: Fraser Shaw, Heritage Conservation Advisor

Paskapoo sandstone has been maligned for poor durability, compared to Indiana limestone and sandstones from Ohio or Spain that have been used for conservation projects in Alberta. But to be fair to our homegrown sandstone, masonry in general suffers in Alberta’s climate and in the intense sunlight, drying winds and freeze-thaw cycling in areas like southern Alberta. De-icing salts used for public safety during the long winter months are the nemesis of historic masonry and will relentlessly attack sandstone, limestone and granite alike. How stone is laid in a wall, masonry mortar composition, and design details all contribute to how stone performs over time.

An imposing landmark in downtown Lethbridge, Southminster United Church is a large 1913 building (additions in 1914 and 1950) with a bold Modernist 1961 chapel. The Classical Revival original building dominates with its symmetrical front facade, prominent pediment, monumental engaged columns and exterior of buff-coloured brick with sandstone details. Interestingly, while stone decoration of the 1950 north addition superficially resembles the regional sandstone, it is actually imported Indiana limestone, a different and relatively durable material. Other notable Lethbridge buildings with this combination of local and imported stone are the Galt Museum (former Galt Hospital) and the Bowman Arts Centre (Manual Training School), both Provincial Historic Resources. Lethbridge designated Southminster United Church as a Municipal Historic Resource in 2016.

Circa 1915 photograph from the southwest showing the original 1913 building with its prominent columns and pediment and the 1914 hall addition at left. Source: PA-4032-61, University of Calgary Glenbow Archives Collection.
Read more

Municipal Historic Resource designation refresher series: Provincial Historic Resources and Municipal Historic Resources

Editor’s note: Welcome to the final post in a series of blog posts developed with municipalities in mind who either have or are considering undertaking Municipal Historic Resource designation. In this post, we will discuss how the evaluation of a historic resource at the provincial and municipal level may result in complimentary or differing heritage values. You can read the previous post here.

For more information, please review the “Creating a Future” manuals available here or contact Rebecca Goodenough, Manager, Historic Places Research and Designation at rebecca.goodenough@gov.ab.ca or 780-431-2309.


Written by: Fraser Shaw, Heritage Conservation Adviser and Ron Kelland, Historic Places Research Officer, Historic Resources Management Branch


Complementary and differing values

Alberta’s Historical Resources Act empowers both the Government of Alberta and municipalities to designate, or recognize and protect, a range of historic resources whose preservation is in the public interest. These resources can be places, structures or objects that may be works of nature or people (or both) that are of palaeontological, archaeological, prehistoric, historic, cultural, natural, scientific or aesthetic interest. Albertans value these historic resources because our past, in its many forms, is part of who we are as a society and helps give our present significance and purpose.

As of July 2020, there are currently 390 Provincial Historic Resources (PHR) and 413 Municipal Historic Resources (MHR) in Alberta, some 60 of which are designated both provincially and municipally. These resources merit designation for various reasons, from their association with significant events, activities, people or institutions; as representative examples of architectural styles or construction methods; for their symbolic and landmark value; or their potential to yield information of scientific value.

Heritage values are described in short Statements of Significance, which are listed on the Alberta Register of Historic Places. In this post, we look at examples of heritage values that municipal and provincial governments recognize and how local and provincial values may align, differ or complement each other.

Plaques or markers are often used to identify designated historic resources. These plaques, affixed to Strathcona Public Library in Edmonton, show that it has been designated as a Provincial Historic Resource and a Municipal Historic Resource. PHRs are identified by a blue, enamel button or marker. MHRs can be identified by a variety of plaques and markers depending on the procedures of the municipality. Source: Historic Resources Management.
Read more

Restoration of the Taber Courthouse

Editor’s note: If you’re interested in other restoration projects by the government’s Heritage Conservation Advisers, read about the conservation of Circle L Ranch.

Written by: Fraser Shaw, Heritage Conservation Adviser

Designated a Provincial Historic Resource in 2013, the Taber Courthouse presides over a quiet park just off Taber’s main street. The building’s stately arched entryway speaks to its historic importance as one of Alberta’s first “sub-jurisdiction” courthouses, a system of provincial justice administration introduced at the time.

Built in 1918, Assistant Provincial Architect J.B. Allan developed the courthouse design and noted Provincial Architect Richard P. Blakey subsequently revised it. Blakey’s eclectic mix of Edwardian, Classical Revival and Spanish Colonial Revival elements eventually became an architectural prototype for other courthouses of the period. Examples of Blakey’s work that are still intact include the Blairmore Courthouse in the Crowsnest Pass and the Medicine Hat Courthouse. Both of these buildings are Provincial Historic Resources.

Read more

The conservation of Circle L Ranch

Written by: Fraser Shaw, Heritage Conservation Advisor

If you’ve ever driven down the beautiful Cowboy Trail, chances are you’ve driven by at least a few historic ranches. Some of these ranches, like Bar U and E.P., have been operating for over a hundred years.

Another of those ranches is the Circle L Ranch, started by a storekeeper from Salt Lake City in the late 1800s. The site recently underwent a restoration project to help ensure historic small-scale ranching in remained intact and accessible. The ranch is a Provincial Historic Resource and an excellent example of an early family-run ranch in southern Alberta.

Read more

Strathcona Collegiate Institute, Edmonton

In the spirit of back to school season, here is a previous post highlighting the history of the Strathcona Collegiate Institute/Old Scona Academic High School. It was originally published on RETROactive on October 11, 2011. Enjoy!

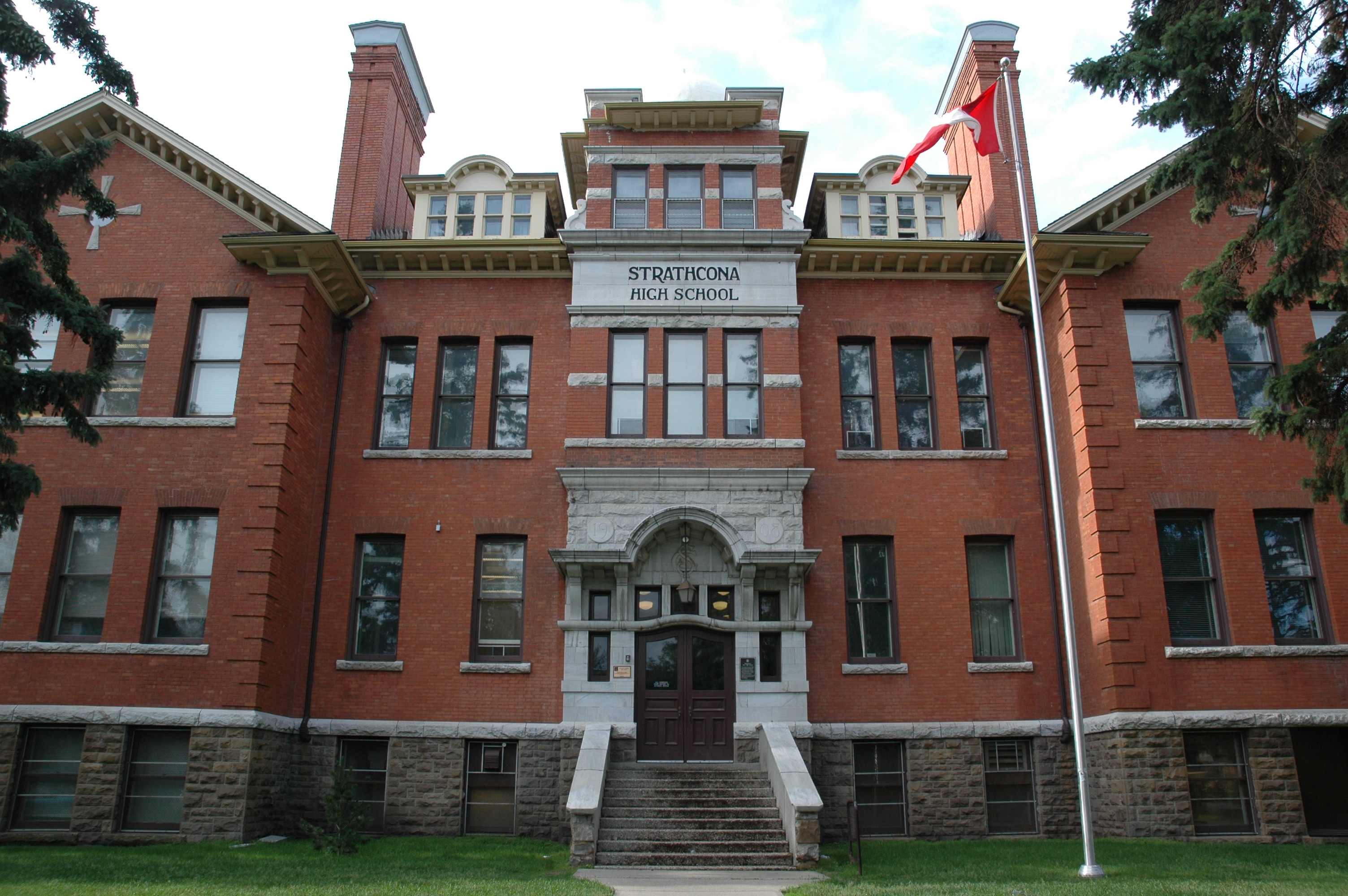

Strathcona Collegiate Institute/Old Scona Academic High School, Edmonton

When the Calgary & Edmonton Railway arrived at the south bank of the North Saskatchewan River in 1891, the C & E immediately subdivided a townsite which it named South Edmonton. Being at the end of steel, the community steadily grew throughout the decade until, in 1899, it was incorporated as the Town of Strathcona with a population exceeding 1,000. As with Edmonton to the north, Strathcona grew rapidly in the wake of the Klondike gold rush, and, in 1907, it was incorporated as a city with an estimated population of 3,500. Edmonton, however, was destined to grow at an even greater Read more

Haunted Heritage Part 2: Abandoned Ghost Towns of Alberta

In keeping with the haunted heritage theme started last year, I thought it would be fun to look at some other spooky places in Alberta. Some of the most haunting places in our province are deserted ghost towns. Along any lonely stretch of highway, travellers are bound to come across the decaying remains of one of Alberta’s abandoned towns. Desertion of these small settlements occurred when local natural resources were depleted and transportation routes shifted elsewhere. With no reason for being, these towns became nothing more than crumbling relics of a bygone era.  Read more

Claiming their Ground – Three Pioneering Alberta Women in their Professions

October is Women’s History Month in Canada, when we celebrate the achievements of women throughout our past and use their stories to inspire Canadians today. The twentieth century saw women entering occupations previously the exclusive domain of men. A variety of circumstances combined to allow these advances, including the rise of public education, social activism culminating in universal suffrage, legal challenges that established women as “persons” and the upheaval created by two world wars. These changes are not sufficient to explain the careers of the three women described in this blog; it took determination, persistence, courage and intelligence for them to succeed and carve a place for themselves as professional women in these fields that were predominantly, if not exclusively, the preserve of men.

diane_loranger
Diane Loranger, geologist, ca. 1946-1947. (Glenbow Archives, IP-14A-1470)

Read more

The Butterfly Effect

Peeling paint and powdering plaster were the first indications something was amiss at the Blairmore Courthouse, a Provincial Historic Resource in the Crowsnest Pass. A leak in the cedar shingle roof, replaced just the previous year, was immediately suspected. Detailing around the dormers in particular, part of the 1922 building’s distinctive Spanish Colonial Revival design by architect R.P. Blakey, is tricky and vulnerable to water penetration.

1920s view of Blairmore Courthouse from the southwest (Photo Credit: Glenbow Archives)
1920s view of Blairmore Courthouse from the southwest (Photo Credit: Glenbow Archives NA-712-3)

Nippon School of Technology, which owns the building and runs a technical school and exchange program for Japanese engineering students there, inspected the roof from the attic and found no active leaks. Puzzled, N.I.T. engaged a conservation architect to inspect the building and identify sources of moisture causing the paint and plaster failure. The findings were at once surprising and (in hindsight) credible.   Read more

Hangar 14 and the British Commonwealth Air Training Plan

The British Commonwealth Air Training Plan (BCATP) is considered to be Canada’s primary contribution to the Second World War. Although the Plan was only in existence from 1940 to 1945, it left a lasting impact on Alberta and Canada as a whole. One of the most visible results of the Plan was the building construction that boomed during this time. There are examples of buildings produced during the BCATP period that are still in existence and the historical significance of these structures is evident today, one of which is Hangar 14, located at the former Blatchford Field and Municipal Airport site in Edmonton. This post will look at the foundation of the BCATP and summarize the distinct features of Hangar 14 that demonstrate the building’s significance as a provincial historic resource.

AAM 019
Hanger 14, the home of the Alberta Aviation Museum, Edmonton.
(Erin Hoar, 2015)

Read more
